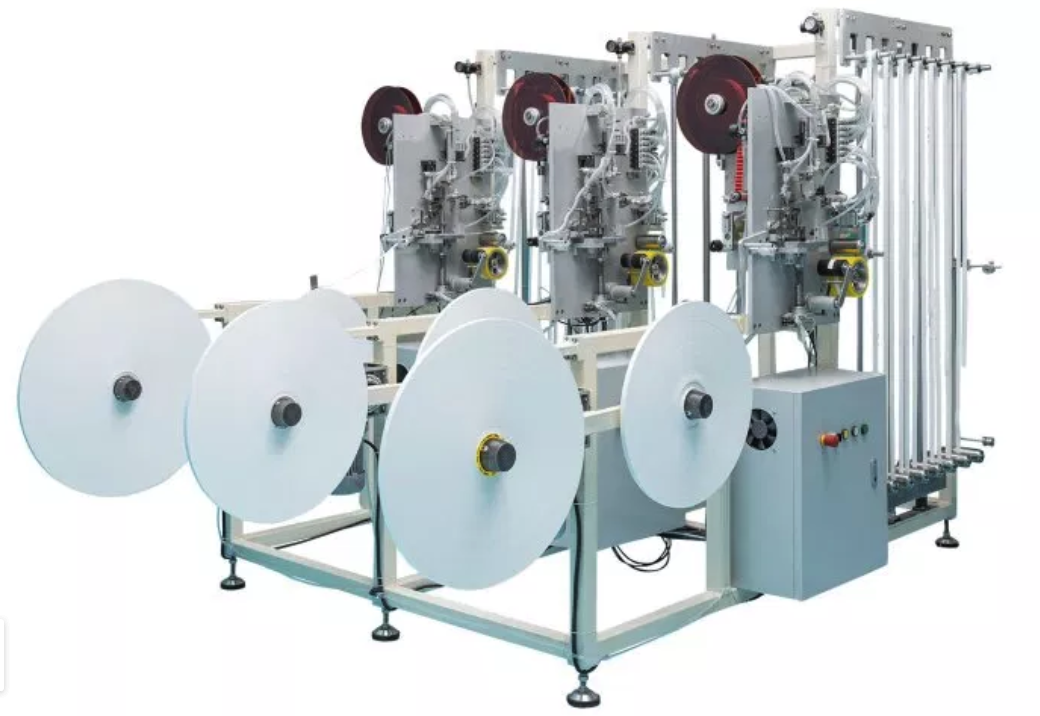

Biodegradable paper straws making machine 100m/min.stable working speed

1.Automatic paper roll changing.

2.Glue box sealed,no exposed to air.

3.Nine knives cutting at the same,ensure 100m/min.high speed running.

4.Vacuum cleaner.

5.Roll paper using servo motor the speed adjusting roll paper is more stable.

6. Machine adopts PLC control, all data can be display in the touch screen.

7. Paper Dinking Straw Making Machine supply of lubricant automatically.

Technical Parameters

Q&A about Environment Friendly Advanced Paper Straw Making Machine:

1, What type of material is used to make paper straw?

White paper with Food grade: 118 GSM and 63 GSM ( Please buy it as 2:1 which means if buy 2 rolls 118GSM then 63 GSM buy 1 roll, as the paper straw with 3 layer, inner 2 layer is 118GSM)

2, What type of glue is used to make the paper straw? We want to know technical spec of the glue we need and some quantity to produce here in my factory.

Name: WATER BASED ADHESIVE

Must is by FDA approved ( Food Grade) important.

Content Of Non Volatile Matter: ≥46-50%

Viscosity: 2950~3100

Ph: round 5.2

Remnants VAC: ≤0.09%

Particle Diameter: 0.9um

Dilution Stability: ≤3.4%

Minimum Film Forming Temperature: ≤0.9℃

Price: round 2200usd each ton

Different type glue price also will a little different.

 High Speed Paper Straw Machine Function Brief:

1. Sealed glue box,no exposed to air.

2. Spiral winding unit , specialized operation system, Belt tension device (hand-wheel drive).

a. Send the paper to the winding unit .

b. Wind the paper shape to straw by winding system

3. Silicone oil lubrication system

Add silicone oil on the paper which for paper running smooth

4. Multi-knife cutting system and spiral rolling mechanism

Multi-blades cutting system is controlled by encoder. Servo synchronous tracking cutting system makes it higher precision and multi-knife cutting makes it higher efficiency.

5. Using PLC control and touch screen

With PLC control and touch screen, working data can be preset on the control panel and it is easy for operation.

6.Using servo motor control system which can track the cutting length with high precision and high efficiency.

7. Paper straw collecting system : collect the straws automatically and row them tidily in the container (By Client choose).

paper straw making machine as a ideal equipment for paper straws, with a high speed and stable capacity it is specially dedicated to spiral wind paper tubes of very small diameters.

The papaer straw making machine easy operating, and low maintenance cost and great flexibility make this machine perfectly suited for all paper tube manufacturer.

Yurefon all machines equipped with top quality famous electrical parts and mechanical parts, such as Schneider, Siemens, Airtac etc. We also accept fully customizable according to your request.

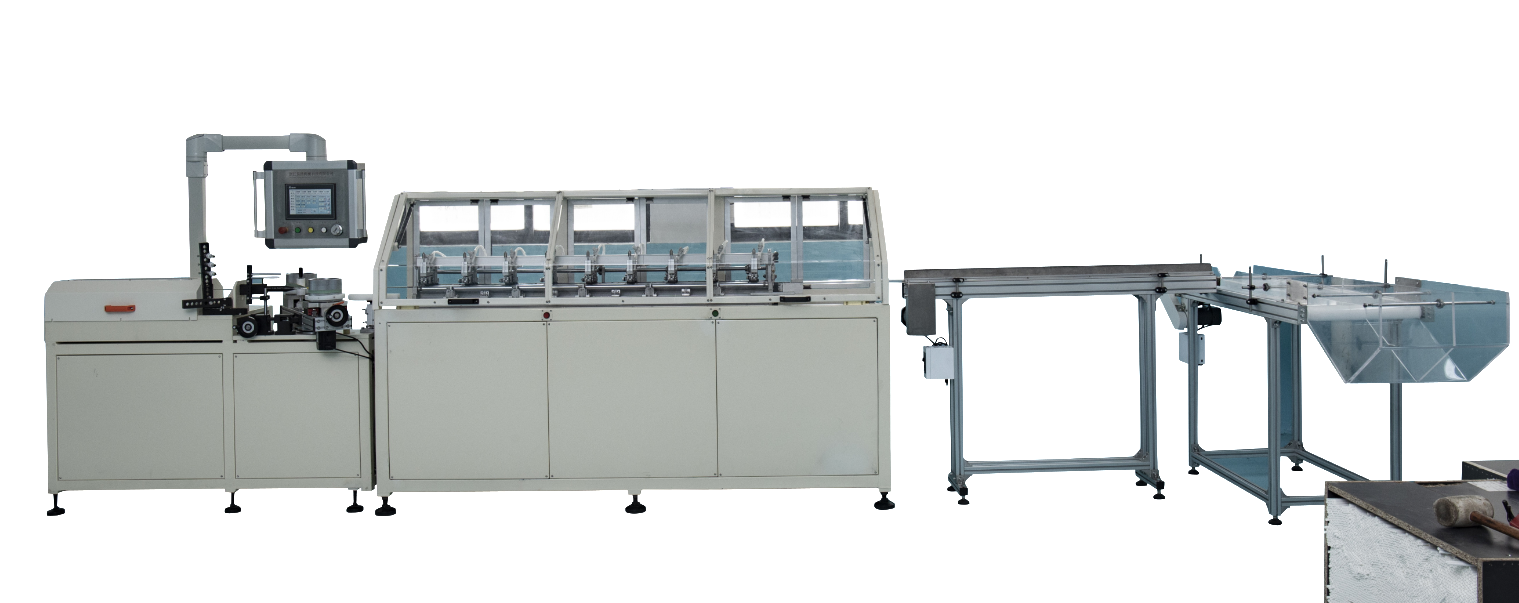

Machine Picture.

Automatic paper roll changing unit

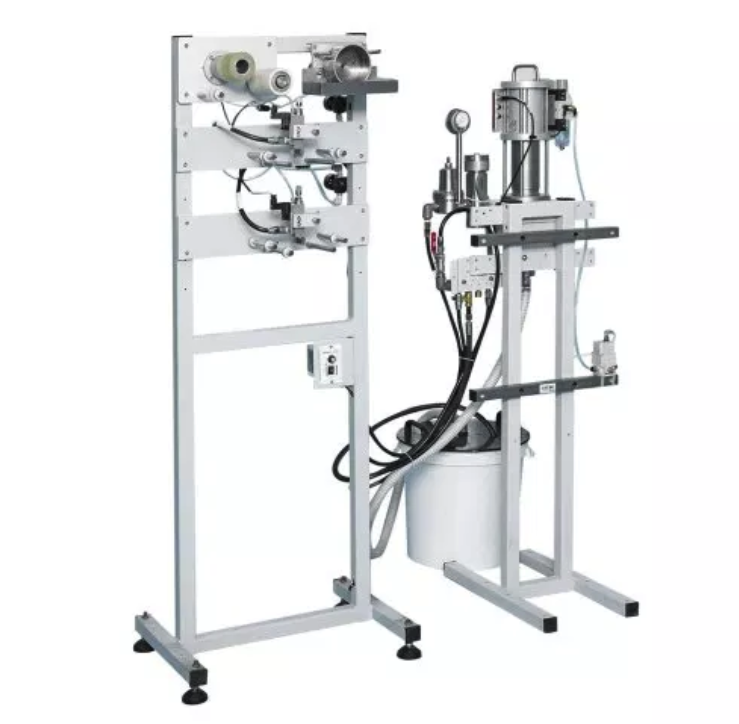

Sealed glue box,no exposed to air,more clean and easy to operate when production
