Name:5mm-12mm high speed multi-cutters paper drinking straw making machine
Material:Stainless Steel
Speed:40m/Min
Advantage:Degradable Paper
Color:Customization
Belong:Straw Making Machine
Layer:3 Layer
Speed Control:Inverter
Motor:Servo Motor

Product Description

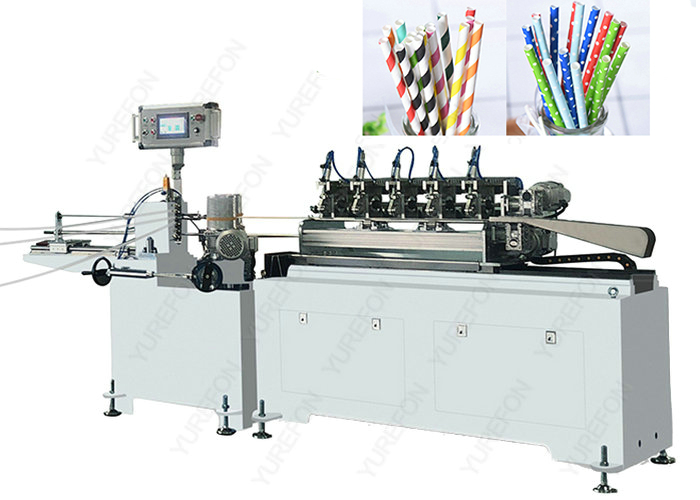

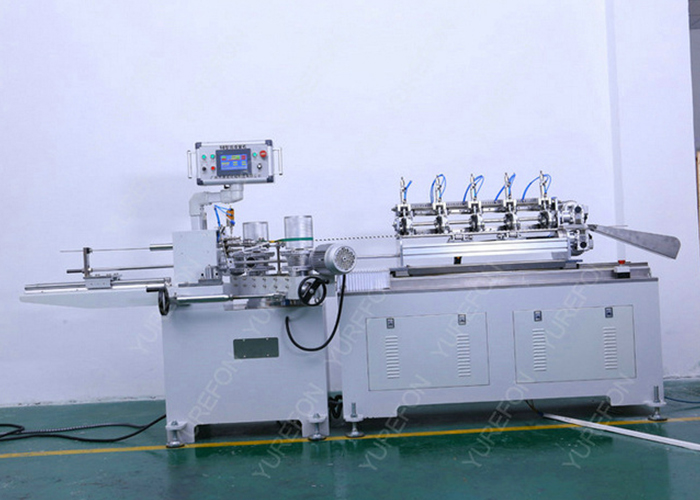

5mm-12mm high speed multi-cutters paper drinking straw making machine

1. Machine adopts PLC control, all data can be display in the touch screen.

2. Numerical control servo cutter device, high precision cutting;

3. Automatically cut, automatically fall pipe, automatically change speed and revert;

4. Round knife cutting, incision more smooth, performance more stable;

5. With online multi-cut blades, no need secondary cutting, save labor and time.

6. Stainless steel gluing box, with polyurethane scraper and high carbon steel plastic knife, durable in use;

7. Machine adopts Flange for fix the mandrel.

8. Paper Dinking Straw Making Machine supply of lubricant automatically.



Technical Parameter

Number of roller

3 layer

Tube diameter

5-12 mm

Wall-thickness

0.5-1 mm

Core mould fixed

Flange chuck

Winding head

2

Cutting way

6 multi-blade

Gluing way

Single side

Operator

1-2 person

Winding speed

30-45 m/min

Speed control

Inverter

Cutting control

Servo Sync

Air pressure

0.6Mpa

Power supply

380V*3P/50Hz

Straw collecter

Auto

Angel correction

Auto by motor

Language

English


Control system

Main motor

3 KW

Reducer type

RV110-1:15

Conveyor reducer

RV 30/40-1:7.5

Servo motor

Teco, Taiwan

Servo driver

Teco, Taiwan

PLC controller

Siemens

Touch screen

Siemens

Inverter

ABB Switzerland

Electric part

Siemens

Single part

ABB

Pneumatic part

AIRTAC

Fix length way

Encode


Configuration

Paper reel stand

3 layers

Glue system

3 layers

Conveyor

1 set

Blades

6 pieces

Belts

5 pieces

Core mould

2 set

Useful tool

1 set


Measurement  weight

Mainframe size

3000*1400*1450

Area space

6000*6000 mm

Weight

2000 KGS




Q&A about 5mm-12mm high speed multi-cutters paper drinking straw making machine:



1, What type of material is used to make paper straw?

White paper with Food grade: 118 GSM and 63 GSM ( Please buy it as 2:1 which means if buy 2 rolls 118GSM then 63 GSM buy 1 roll, as the paper straw with 3 layer, inner 2 layer is 118GSM)


2, What type of glue is used to make the paper straw? We want to know technical spec of the glue we need and some quantity to produce here in my factory.

Name: WATER BASED ADHESIVE

Must is by FDA approved ( Food Grade) important.

Content Of Non Volatile Matter: ≥46-50%

Viscosity: 2950~3100

Ph: round 5.2

Remnants VAC: ≤0.09%

Particle Diameter: 0.9um

Dilution Stability: ≤3.4%

Minimum Film Forming Temperature: ≤0.9℃

Price: round 2200usd each ton

Different type glue price also will a little different.


 5mm-12mm high speed multi-cutters paper drinking straw making machine Function Brief:

1. Stainless Steel Glue Unit

Choose gluing single side or double sides. The drinking straws are glued evenly and stuck firmly. ( Glue by WATER BASED ADHESIVE which FDA approved Food Grade)

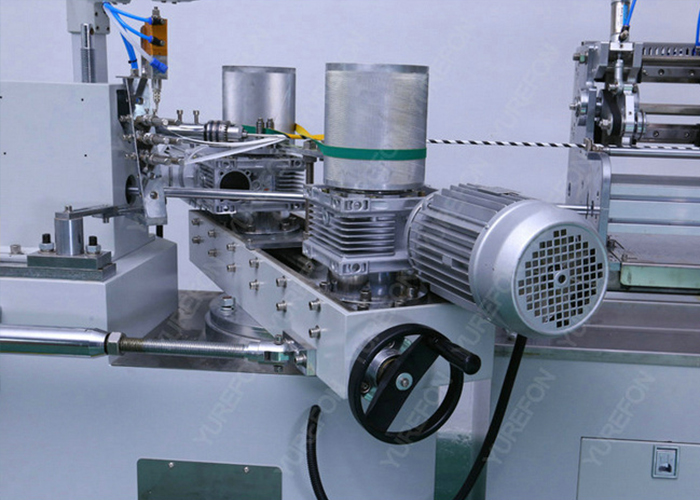

2. Spiral winding unit , specialized operation system, Belt tension device (hand-wheel drive).

a. Send the paper to the winding unit .

b. Wind the paper shape to straw by winding system


3. Silicone oil lubrication system

Add silicone oil on the paper which for paper running smooth


4. Multi-knife cutting system and spiral rolling mechanism

Multi-blades cutting system is controlled by encoder. Servo synchronous tracking cutting system makes it higher precision and multi-knife cutting makes it higher efficiency.


5. Using PLC control and touch screen

With PLC control and touch screen, working data can be preset on the control panel and it is easy for operation.


6.Using servo motor control system which can track the cutting length with high precision and high efficiency.


7. Paper straw collecting system : collect the straws automatically and row them tidily in the container (By Client choose).

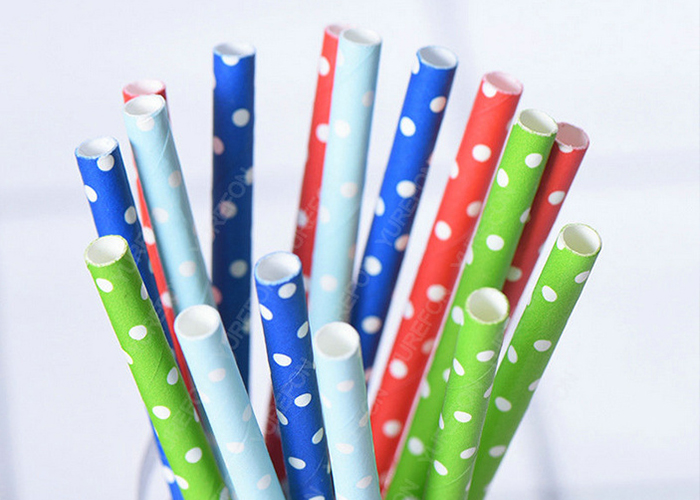

5mm-12mm high speed multi-cutters paper drinking straw making machine as a ideal equipment for paper straws, with a high speed and stable capacity it is specially dedicated to spiral wind paper tubes of very small diameters.

The papaer straw making machine easy operating, and low maintenance cost and great flexibility make this machine perfectly suited for all paper tube manufacturer.

Yurefon all machines equipped with top quality famous electrical parts and mechanical parts, such as Schneider, Siemens, Airtac etc. We also accept fully customizable according to your request.
